DOCKCASE Visual Smart USB C Hub (6-In-1) with HDMI Port 4K@60Hz, Gigabit Ethernet, USB-C and 2 USB-A 5Gbps Data Ports, 100W PD Power Delivery, for Macbook Air, Macbook Pro, XPS, and More



Smart Visual Hub: There are only two hubs in the world, DOCKCASE and others. The first smart USB C hub with HD display screen,when all ports are connected(the main interface displays the core information of each port),not only can grasp real-time data, but also realize human-machine interaction, which maximizes productivity....

TMD Touch

10 In Stock Out of stock 10


Regular price $142.95 $158.95
Regular price $142.95


Expected AU delivery date, between -

Notify Me

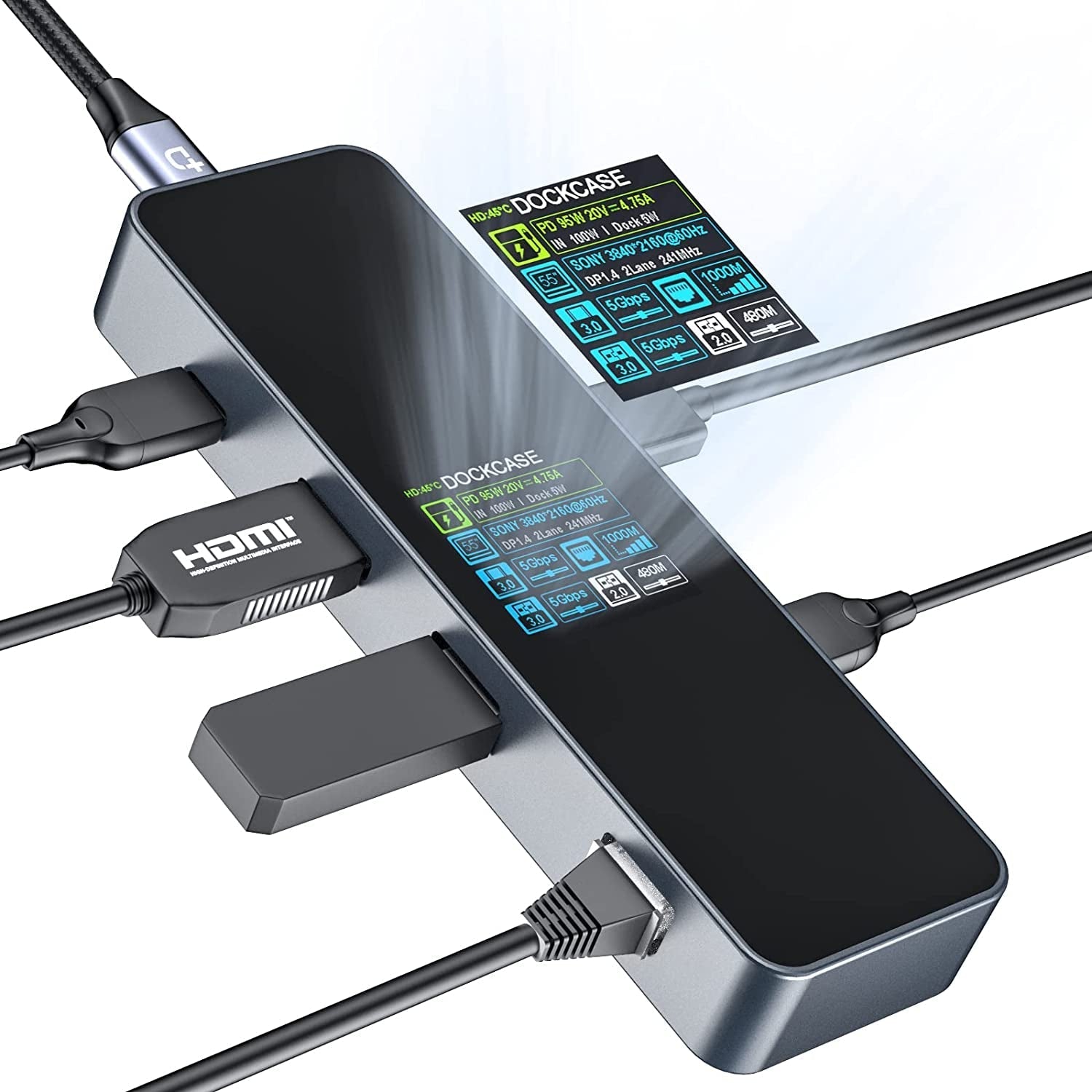

  • Smart Visual Hub: There are only two hubs in the world, DOCKCASE and others. The first smart USB C hub with HD display screen,when all ports are connected(the main interface displays the core information of each port),not only can grasp real-time data, but also realize human-machine interaction, which maximizes productivity.

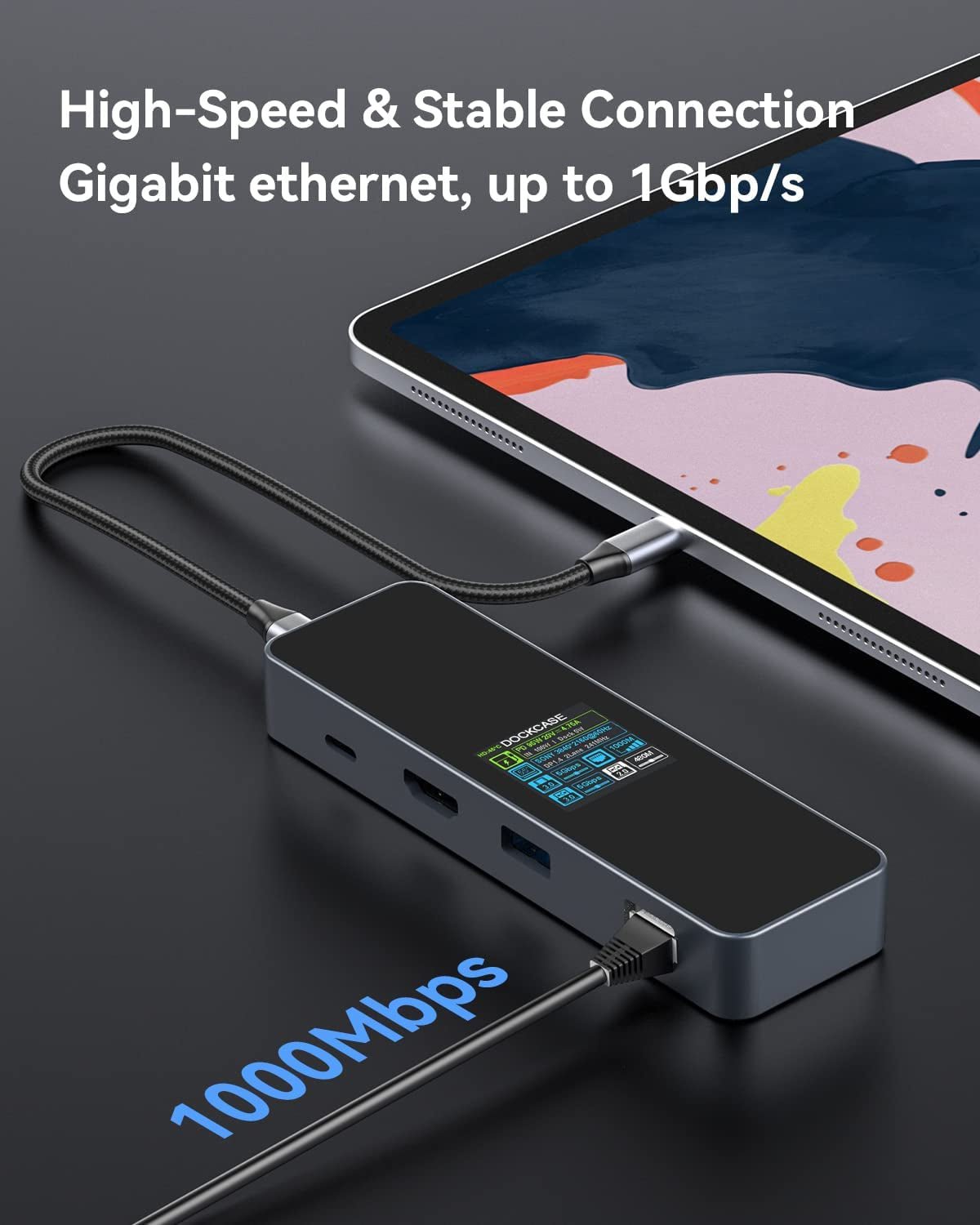

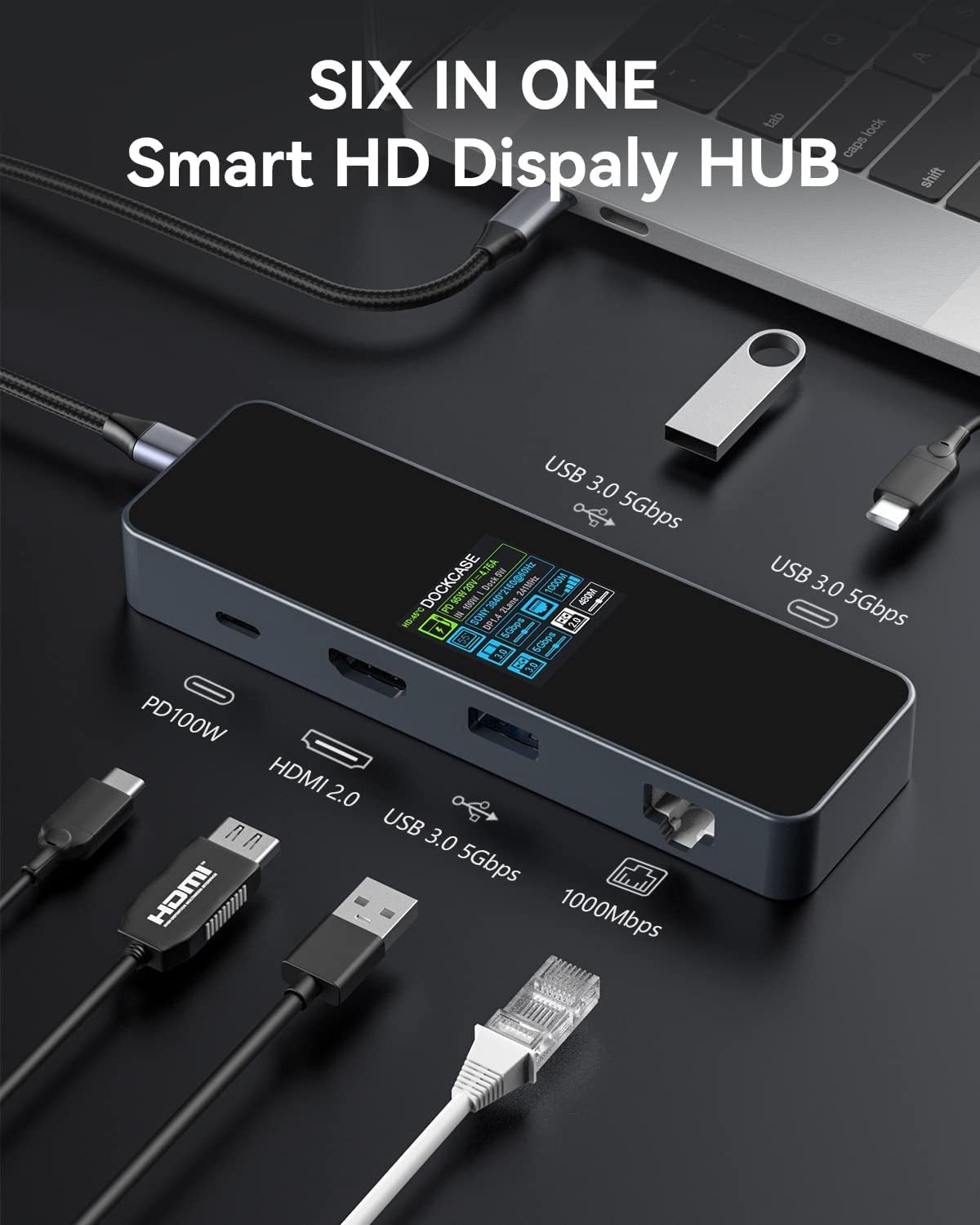

  • High-Speed + Safely: 2 USB A 3.0 & 1 USB C data ports support 5gbps high-speed transmission 1 Gigabit Ethernet up to 1Gbp/s, while an HDMI port supports media display at resolutions up to 4K@60Hz, as well as high-velocity pass-through charging with 100W Power Delivery.

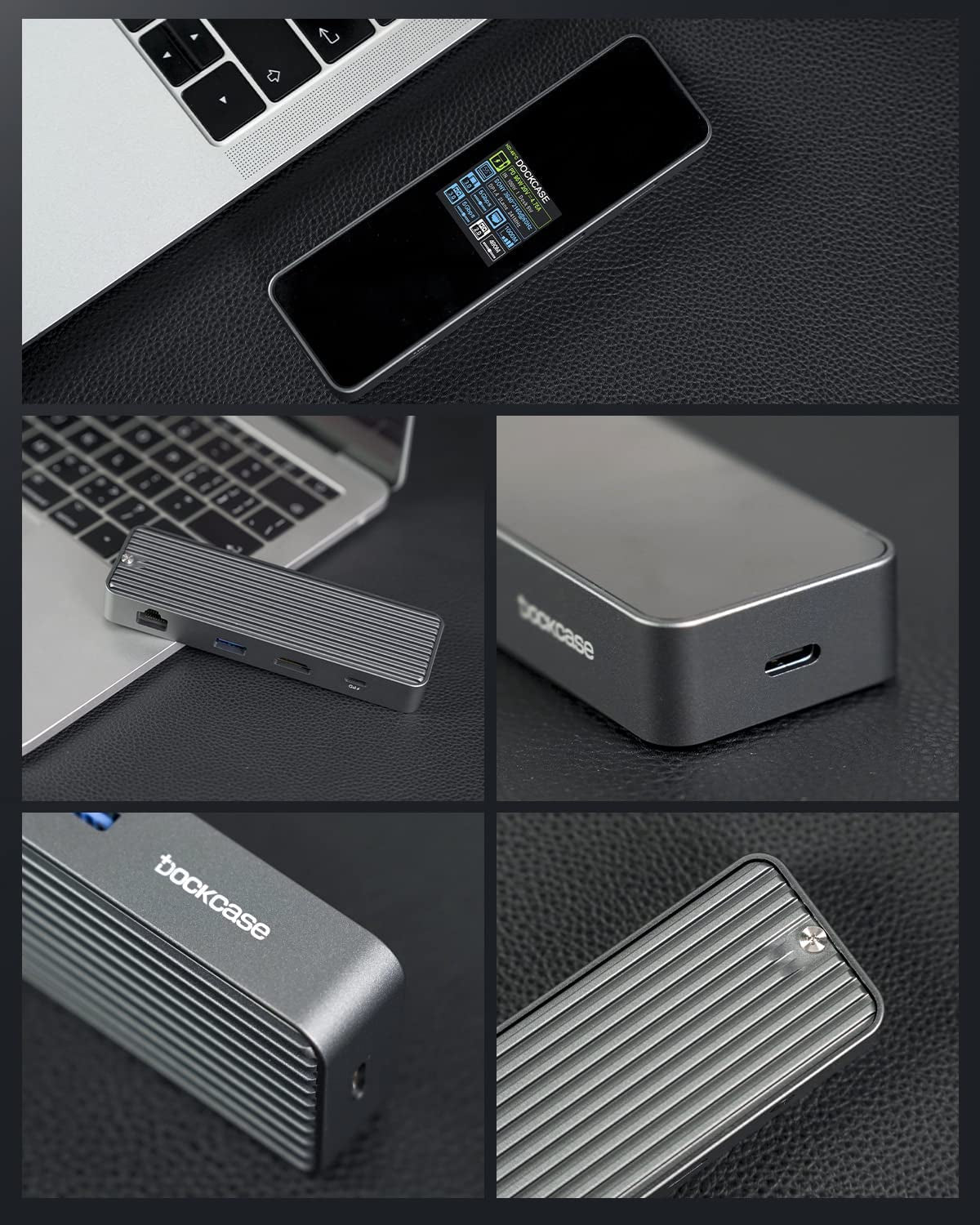

  • Smart Heat Dissipation: Built-in ch579m chip, smart display real chip temperature, the internal temperature is clear at a glance.The uni-body design with the aluminum alloy shell and fin pattern cover for easier heat dissipation to ensure stable work, product use temperature is much lower than peers
  • D-Key Button: After the Smart Dock is powered on, the D-Key button can be used to operate the control panel, short press the D-Key to rotate the display direction of the dock screen, long press the D-key 6s to enter dock's control panel,allows you to control various functions, switch operation modes intelligently to adapt to different working scenarios.
  • What you get: DockCase USB C smart visual hub, 1 USB-C to C full-featured data cable (0.98ft), user manual,12-month warranty, and friendly customer service.

Product Description

Introducing DOCKCASE Visual Smart USB C Hub (6-in-1)

DOCKCASE Smart hub is a revolutionarily integrated dock for data transfer, speedy charging and real-time information visualization, which can display real-time data information.

Featuring a screen, the visual hub will show you real-time information about your connections, whether the data transfer is applied to the fatest speed, whether the HDMI output works the best resolution, so you can master ahead and achieve the best working performance.

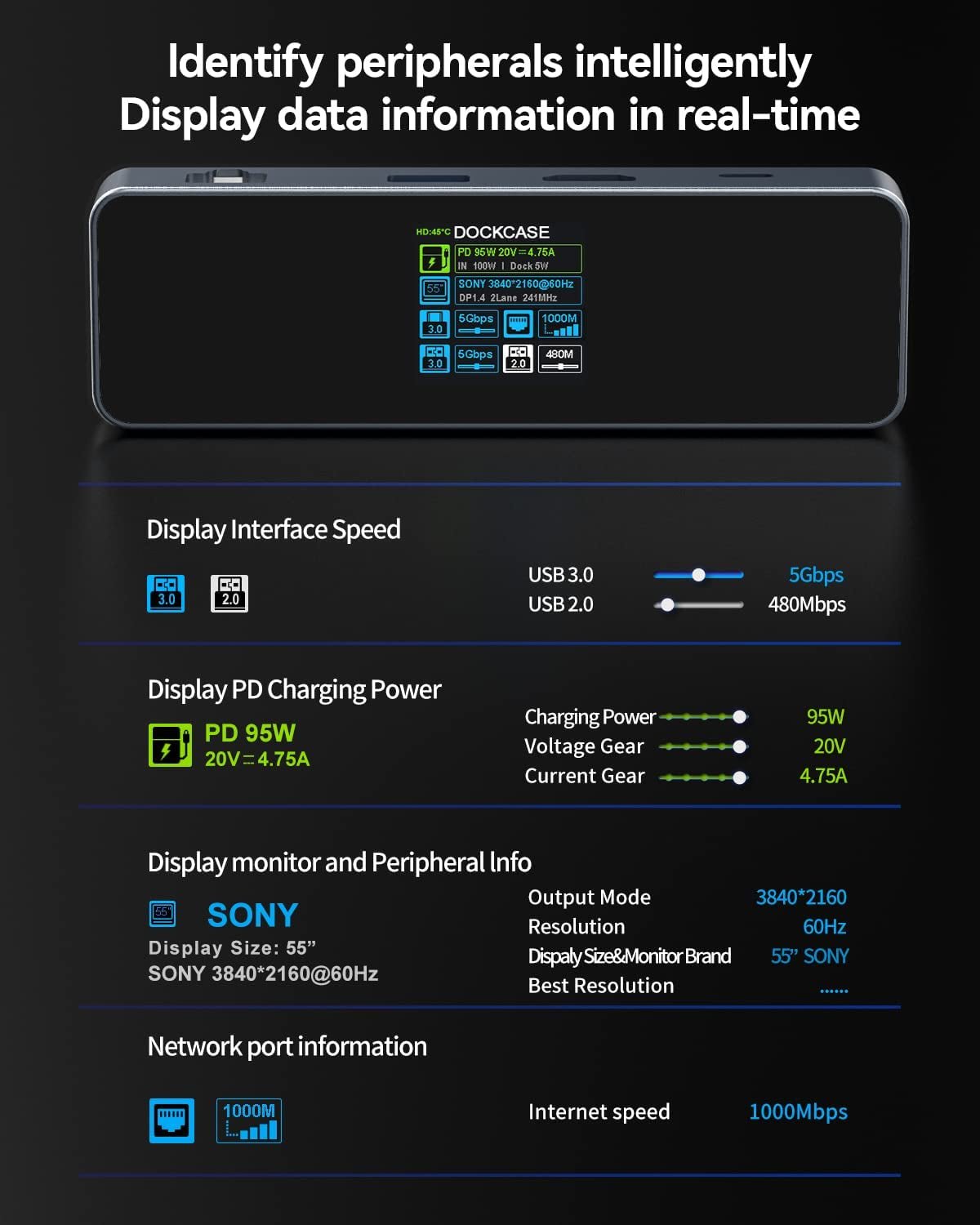

The Operating Status is Clear at a Glance

One button, multiple identities. D-Key, which allows you to control various functions, switch operation modes and rotate the screen intelligently to adapt to different working scenarios.

Home page: Displays information on each connected port.

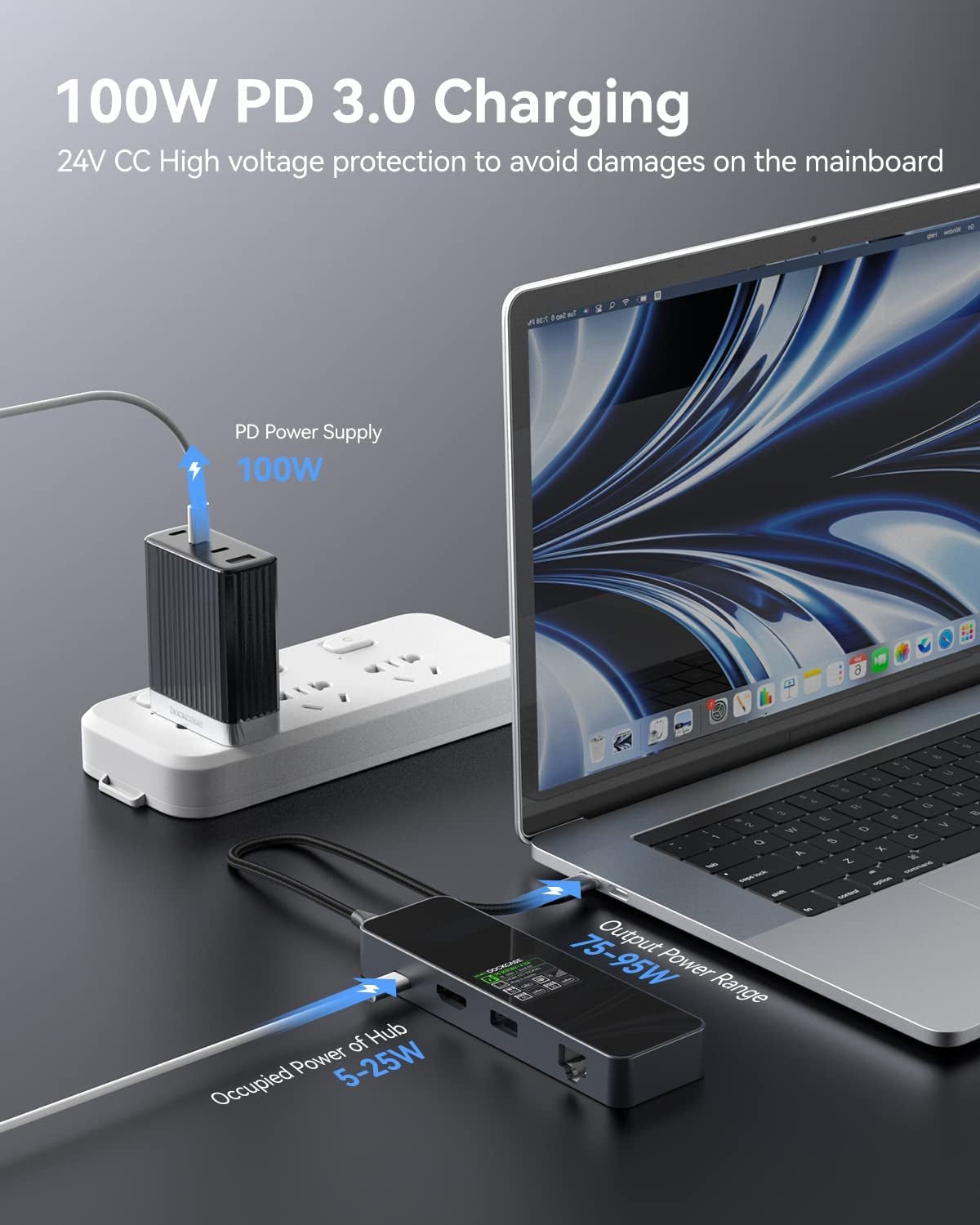

PD Charging Page: Shows voltage, current and temperature.

HDMI page: Shows monitor brand, size, current resolution, date of manufacture, temperature, etc.

Control panel page: You can adjust the detailed data.

FAQ:

Q1: What devices can work with the Smart Hub?

Devices with Full function USB-C port(Meet USB3.1 Gen2 protocol or above) are supported to work with the Smart Hub. MacBooks, ThinkPad, iPad Pro 2018/2021, Lenovo ,Samsung Galaxy S/Note series, Huawei Mate/P series, etc.

Q2: Does the Smart Hub support iPad?

Supports iPad Pro 12.9"(3rd,2018), iPad Pro 12.9"(4th,2020), iPad Pro 12.9"(5th,2021), iPad Pro 11"(1st,2018), iPad Pro 11"( 2nd, 2020), iPad Pro 11" (3rd, 2021) and iPad Air (4th, 2020).

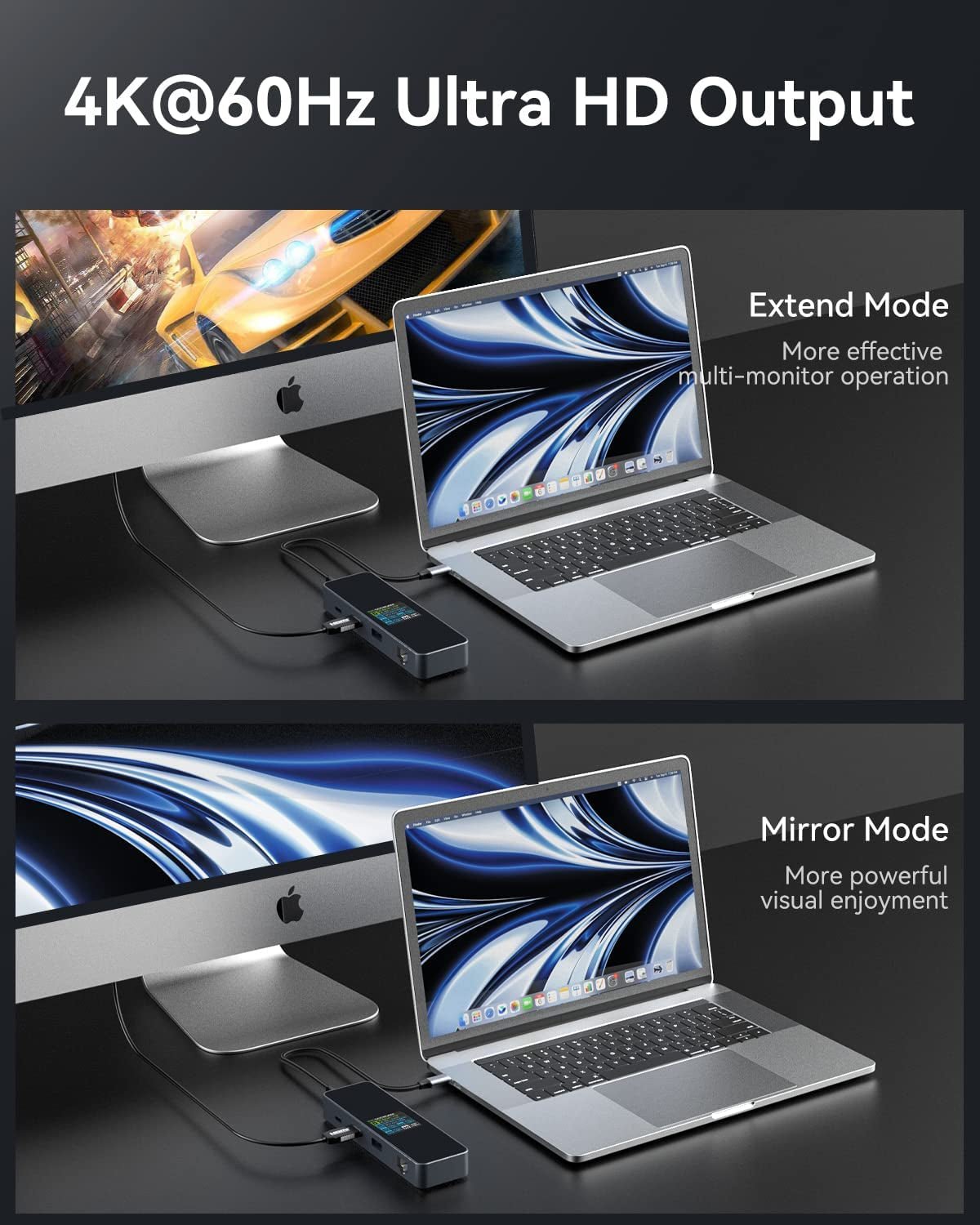

Q3: Does it support 4K@60Hz output?

4K@60Hz resolution is supported if the connected laptop supports DisplayPort 1.3 or higher (HBR3) and the monitor supports 4K@60Hz. If the version of the connected laptop is lower than DisplayPort 1.3, the maximum resolution supported is 4K@30Hz.

Q4: Does the PD port of the Smart Hub support external charging?

The PD port belongs to the power input port and does not support external power supply.

Q5: Does the data USB-C port support connecting to a monitor?

No, the Smart Hub doesn't have a USB-C port that supports video output.

Q6: What Should I do if I Encounter Problems During use hub?

You can take a picture or video of the usage scene and wiring situation, and tell us your device model.

Applicable to most devices with a full-featured USB-C connection port

Notes:

This hub can support 4K@60Hz display with 11" iPad Pro, 12.9" iPad Pro with Type-C port, 13.3" MacBook Air (2020 models), 13.3" MacBook Pro (2018 and subsequent models), 15.4" MacBook Pro (2017 and subsequent models), 16" MacBook Pro (2019 and subsequent models), 21.5" iMac Retina 4K Display (2017 and subsequent models), 27" iMac Retina 5K Display (2017 and subsequent models), iMac Pro (2018 models)

and Most Windows computers with GTX1060 or higher graphics card and supporting Display-Port 1.4.

USB-C Connection Detachable Detachable Detachable Detachable Detachable
USB-C Charging Port 100W(Use 100W PD Charger) 100W(Use 100W PD Charger) 100W(Use 100W PD Charger) 100W(Use 100W PD Charger) 100W(Use 100W PD Charger)
USB-A Data Port 3 (5Gbps) 2 (5Gbps) 3 (5Gbps) 2*USB-A 3.2(10Gbps) 2*USB-A 2.0 2*USB-A 3.2(10Gbps) 2*USB-A 2.0
HDMI Port (4K@60Hz) 1 1 1 1 1
SD/TF Card - - 1(USH-I) - 1 (USH-II)
Ethernet Port 1 - - 1 1
USB-C Data Port 1 (5Gbps) 1 (5Gbps) - 1 (10Gbps) -
Built-in Cooling Fan - 1
Material Aluminum Alloy& Tempered Glass Aluminum Alloy& Tempered Glass Zinc Alloy & Tempered Glass Zinc Alloy & Tempered Glass Zinc Alloy & Tempered Glass
Built-in Cable 0.98ft 0.98ft 0.72ft 0.72ft 0.72ft
