Brand: VVV-Group

Features:

• LARGE DISPLAY - The coating thickness gauge CM-205 FN is equipped with a large 2.2’ display with ice-backlight and high definition data display. All values are in large print, which improves the user experience and usability of the device.
• ACCURACE AND USABILITY - The thickness gauge accurately measures on surfaces of any shape - concave, rough and convex, thanks to the dynamic design of the measuring sensor. Device has light weight and fits comfortably in the hand, and is also equipped with large buttons for working with gloves.
• MAIN PARAMETERS - Resolution: 0.1um/0.01mils; Measuring range: 0~1500um (0~59.1mils); Automatic recognition for iron (ferrous) and aluminum (non-ferrous) substrates; Digital LCD display for clear reading; Automatic shutdown function; Accuracy: ± 3%; Measuring units: um and mil; Calibration: Easy and fast calibration of the zero surface.
• RELIABILITY AND DURABILITY - The measuring sensor is made of steel and coated with Teflon for better protection and durability. The thickness gauge works with high precision in all weather conditions - temperatures up to -13...104F, high humidity and gas contamination.
• WIDE USES - It is highly accurate and compact instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. This device can be used for determining the average thickness of paint on the car body, used by amateurs and professionals in manufacturing, workshops, paint shops, in the automotive.

model number: CM-205

Part Number: CM-205FN

Details: Best Economical Thickness Gauge with the accuracy of Professional measuring equipment without unnecessary functions! This thickness gauge VVV-Group CM-205FN is highly accurate and compact instrument used to quickly and accurately measure thickness of coating or plating on all kinds of metal surface. This device can be used for determining the average thickness of paint on the car body, used by amateurs and professionals. The measurement step is only 0.01 mils, range is 0-59 mils, which leads us to high precision sizes. Due to this fact, you can easily reach difficult to get to places of your car. The coating thickness gauge well tolerates mechanical damage, moisture, and temperature changes. This coating thickness tester does not need frequent calibration, because its practically does not recalibrate. But if you need to calibrate paint thickness meter all the necessary is granted in the kit. Specifications: Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe); Resolution: 0.1um/0.01mils; Measuring range: 0~1500um (0~59.1mils); Automatic recognition for iron (ferrous) and aluminum (non-ferrous) substrates; Digital LCD display for clear reading; Automatic shutdown function; Accuracy: ± 3%; Statistics: No. of readings, mean, minimum, maximum and standard deviation; Measuring units: um and mil; Calibration: Easy and fast calibration of the zero surface; Powered by 1.5V AAA Batteries; Included in the package Thickness gauge of model CM-205FN. Calibration set from Aluminum and Iron plate. 5 calibration foils. Pouch for carrying and storage. Manual in English. Buy our Thickness Meter NOW And Never Be Fooled Again!

Package Dimensions: 6.5 x 1.9 x 0.7 inches

Best Economical Thickness Gauge with the accuracy of Professional measuring equipment without unnecessary functions!

This Thickness Gauge VVV-Group CM-205FN is highly accurate and compact instrument used to quickly and accurately measure thickness of coating or plating on all kinds of metal surface. This device can be used for determining the average thickness of paint on the car body, used by amateurs and professionals.

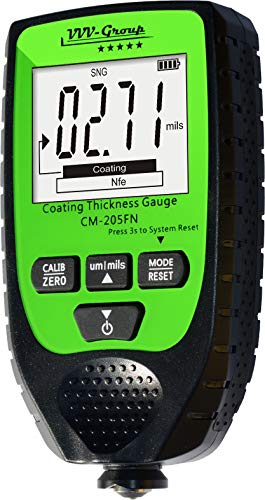

Large LED backlit display

The screen of the thickness gauge is equipped with LED backlighting and also has a large font for maximum readability of measurement results in any conditions.

Dynamic measuring sensor

The thickness gauge with the dynamic design of the measuring sensor fits snugly on any convex surface for high measurement accuracy. The sensor has a teflon coating to protect the surface being tested.

Professional assistant

Automatic indication

The thickness gauge automatically determines the type of base - magnetic(based on magnetic induction) or non-magnetic(based on eddy currents) metal, and selects the desired measurement principle.

High accuracy

The thickness gauge takes measurements from steps of just 0.01 mils, and the measurement range is 0-59 mils.

Always ready to Use

Working temperature

The thickness gauge stably works in the temperature range from -25 to 60C (-13 ... 104F).

High speed

In one second the thickness gauge can make two or more measurements.

Best for Car Testing

Zero and point calibration

The thickness gauge can be calibrated to zero, as well as points for greater accuracy of the device. Everything you need is provided in the kit. For vehicle testing, detailed calibration is not required, as the thickness gauge has a very accurate factory calibration.



Main advantages:



• High Accuracy;
• all conditions Stability;
• wide range of working temperature;
• zero calibration and detailed point calibration;
• ergonomic protected case;
• works with ferrous and non-ferrous metals;
• Sensitive measuring sensor;



Additional functions:



• Display backlight.
• Sound assistant.
• Battery indicator.
• Single and continuous measurement mode.
• Detailed calibration with reference plates.
