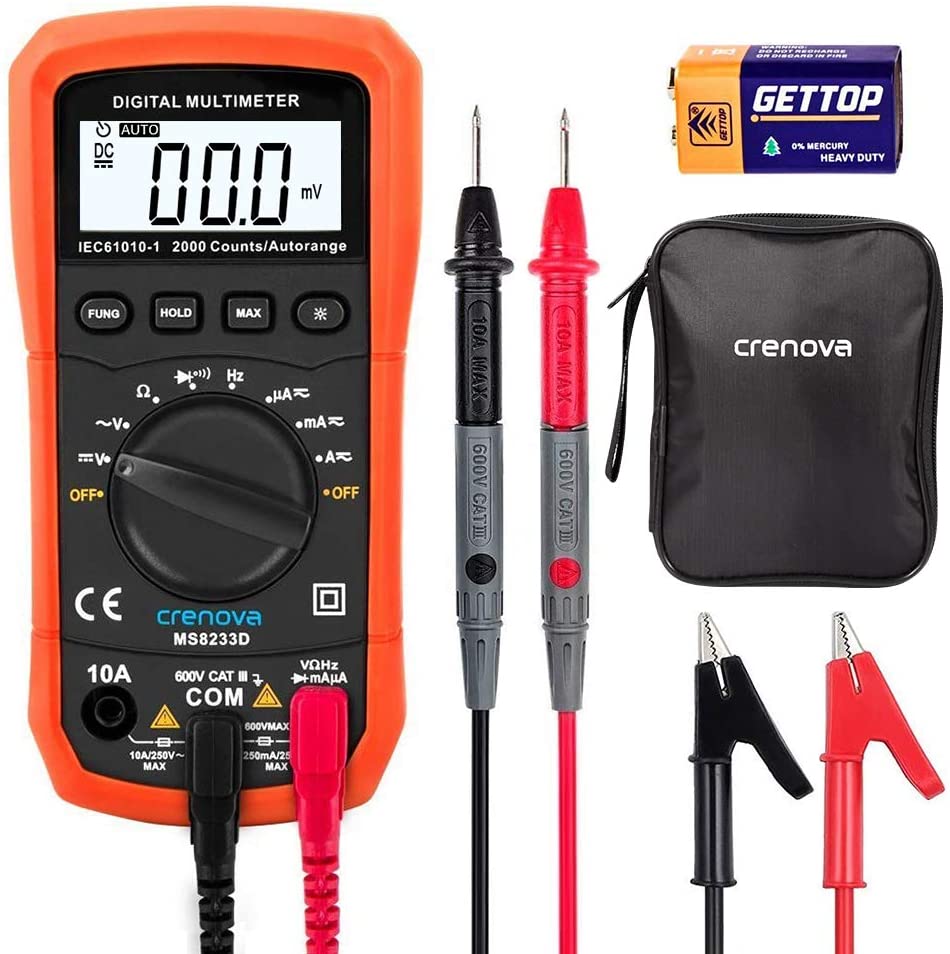

Crenova MS8233D Auto-Ranging Digital Multimeter Home Measuring Tools with Backlight LCD Display (Orange)
9 In Stock Out of stock 9
- 【100% Safety Assurance】Built-in Double Fuse. Overload Protection on all ranges.
- 【Auto-ranging Tester】Accurately measure AC/DC voltage, AC/DC current, resistance, frequency, continuity, diode, etc.
- 【Backlight Display】 Designed with 3 1/2 digit LCD display and 'Backlight', showing the reading clearly in low light areas.
- 【Special Points】 Data Hold, Maximum Value Hold, Function Switching, Auto Power OFF. Sampling Speed: 3 times per second.
- 【9V Battery】DON'T forget to install the 9V battery before using the digital multimeter, or it will go on strike.
Product Description
Technical Specifications:
1.DC Voltage: *200mV/2V/20V/200V ±(0.5%+2) *600V ±(0.8%+2)
2.AC Voltage: *2V/20V/200V ±(0.9%+3) *600V ±(1.2%+3)
3.DC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+3)
4.AC Current: *200μA/2000μA/20mA/200mA/10A ±(1.5%+4)
5.Resistance: *200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2) *2MΩ/20MΩ ±(1.0%+2)
6.Frequency: *20kHz ±(1.5%+5)
7.Power Supply: 9V Battery (6F22 or 1604A Type)
8.Safety Class: IEC 61010-1, CAT II 600V
Versatile Applications:
|
|
|
|
|---|---|---|
***AC/DC Voltage Test*** |
***Battery Test*** |
***Resistance Test*** |
Special Features:
|
|
|
|
|
|---|---|---|---|
Backlight LCD3 1/2 digit LCD display provides clear display. And 'Backlight' can help show the reading clearly in dark areas and at night. |
Data HoldIf you want to record the measurement value, just press the 'Hold' button, then the reading showed on the screen will be locked. |
Full SupportFoldable stand for hand free use. Just open up the support stand, the multimeter can be propped up stably. |
Overload ProtectionBuilt-in Double fuse can protect the multimeter effectively. Overload Protection on all ranges. |
